What are the materials of computer motherboards?

What are the materials of computer motherboards?

Printed Circuit Board (PCB) Substrate

Paper Substrate: Made of pulp and phenolic resin, it is relatively cheap and has certain mechanical strength and electrical insulation properties. However, it has poor heat and moisture resistance and is generally suitable for simple electronic devices with low performance requirements. It is rarely used in computer motherboards and is commonly found in some low-end consumer electronic products.

Fiberglass cloth substrate: It is made of fiberglass cloth as a reinforcing material, impregnated with epoxy resin and hot-pressed. It is usually called FR4 substrate and is currently the most commonly used PCB substrate in computer motherboards. It has good mechanical strength, electrical insulation, heat resistance and moisture resistance, can adapt to a variety of complex electronic component installation and wiring requirements, and can ensure the stable operation of the motherboard in various environments.

Synthetic fiber cloth substrate: Use synthetic fiber cloth instead of fiberglass cloth, such as polyester fiber, polyimide fiber, etc. This type of substrate may be superior to glass fiber cloth substrate in some specific properties, such as better flexibility, impact resistance or high temperature resistance, but the cost is relatively high. It is often used in some high-end or special computer motherboards, such as some server motherboards or industrial control motherboards.

Non-woven fabric substrate: Made of non-woven fabric material, it has the advantages of soft texture, light weight and low cost. Its electrical properties and mechanical strength are average. It is mainly used in some small electronic product motherboards that do not require high performance but are sensitive to cost. It is less used in the field of computer motherboards.

Composite substrate: Composite substrates of different materials to combine their respective advantages. For example, the composite of paper substrate and glass fiber cloth substrate can reduce costs and improve performance to a certain extent. This composite substrate is used in some mid- and low-end computer motherboards.

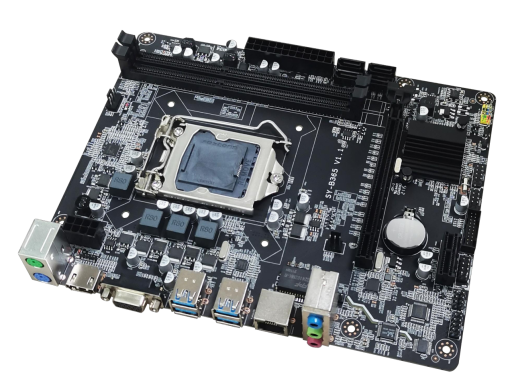

Today, We also have cost-effective motherboards，Angxun Intel® Core™ i7/i5/i3 LGA1151 With ATX-Input，PS/2，HDMI, VGA, SATA，PCIE*2，Dual DDR3，which is Angthumb SY-B365_V1.1 ,the following parameters are supported：

▲ Supports Intel Core i7/ I5 / I3 LGA1151 pin series

processors

▲ Support 4 SATA interface, 6*USB3.0, 4*USB2.0

▲ Support dual channel DDR3,1066/1333/1600/MHz, the maximum capacity of 16G memory

▲ Support 5.1 Audio channel ALC662 chip

▲ Support P/S2 interface, support VGA, HDMI interface

▲ Supports PCIE expansion slot *2

▲ RJ45 Gigabit LAN interface

▲4 layer PCB baseboard,3+1 phase power supply

▲ Support Win7, Win10 32/64 bit operation system

Angxun has been in the motherboard industry for more than 20 years.Registered the brand Angthumb in many countries,we have focused on the production and research and development of intel motherboard,all in one motherboard,and Industrial motherboard,server motherboard，RAM,SSD,CPU,GPU etc.The website is : www.angthumb.com to know more!
