What is the role of Memory Slots in desktop computer motherboards?

What is the role of Memory Slots in desktop computer motherboards?

       Memory slots are used to install memory sticks and are an important part of the computer storage system. Their number and type determine the maximum memory capacity and memory type that the motherboard can support. For example, the common DDR4 memory slots have a variety of operating frequencies, such as 2133MHz, 2400MHz, 2666MHz, 3200MHz, etc. The motherboard will specify the supported memory frequency range. A general motherboard may have 2-4 memory slots, and users can install single or multiple memory sticks according to their needs. By installing memory sticks of sufficient capacity in the memory slots, the CPU can be provided with fast data storage and reading space, thereby increasing the operating speed of the computer system. When the computer runs a program, the program and data will be loaded into the memory first. The CPU reads and writes data from the memory much faster than from storage devices such as hard disks, so sufficient memory capacity and appropriate memory frequency are crucial to the performance of the computer.

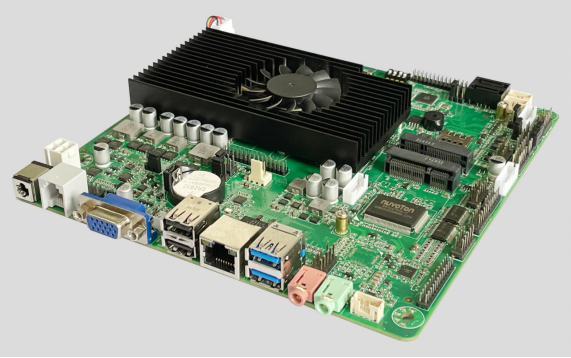

Intel Sandy Bridge/Ivy Bridge Thin Mini-ITX with VGA/HDMI/2*LVDS，LPT，2*COM，Single LAN，2*SATA，MSATA，DDR3L， WIFI/4G Module，DC12V Input，which is Angthumb GW7-POS23 V1.2,the following parameters are supported：

▲Support Intel Sandy Bridge/Ivy Bridge series processors

▲Support DDR3L memory, up to 8GB 1600MHz SDRAM

▲Support stereo dual-channel ALC887 chip sound card or USB sound card

▲Support 2 serial ports, 1 parallel port; support 1 RJ45 Gigabit network card interface

▲Support 2 USB3.0, 6 USB2.0

▲Support 2 7Pin SATA interfaces, 1 MSATA interface

▲Support cash box interface

▲Support 1 Mini PCIE expansion slot (including 8pin SIM card slot), support

WIFI/4G Module

▲Support 1 rear VGA interface, 1 pin HDMI interface, 2 LVDS interfaces, and support simultaneous dual display

▲Support DC12V power input

▲Support Windows7, Windows10 32/64 bit, Linux operating system

Angxun has been in the motherboard industry for more than 20 years.Registered the brand Angthumb in many countries,we have focused on the production and research and development of intel motherboard,all in one motherboard,and Industrial motherboard,server motherboard，RAM,SSD,CPU,GPU etc.The website is : www.angthumb.com to know more!
